Reading Time: 6 minutes

In this post we will make a brief mention to the latest updates in the Azure SQL service and we see how someone can migrate a database to Azure SQL from an on-premise infrastructure.Before we begin the procedure we must know what Azure Database Services
offer.



Prerequisites

What we need to complete the migration process from scratch is all the following prerequisites.

  • On-Premise SQL Server installation
  • Microsoft Account
  • Azure Subscription
  • Data Migration Assistant Tool
  • SQL Database Instance



Procedure In Azure

At this point we login to the Azure Portal and follow the next steps to create a SQL Database Instance.

Azure SQL Database Deployment

Step 1 –  Search The Service

From the left main blade click + Create a resource, type ‘sql database‘ and hit
Enter.

Step 2 –  Create SQL Database

Click the button Create to begin the deployment.

Step 3 – Create SQL Database

First we must create the database, with all important parameters like Server, Pricing Tier, Collation, etc.

SettingValue
Database nameType the database name
SubscriptionSelect an Azure Subscription
Resource groupSelect an existing or create a new Resource group
Select sourceSelect between a blank, a sample database or create a new from an existing backup
Server*Select an existing or create a new server
Use Elastic Pool**Select elastic Pools for managing  multiple database within a fixed budget.
Pricing tier***Select the pricing tier for the SQL database service
CollationDefault database collation is SQL_Latin1_General_CP1_CI_AS, for this demo purposes we’ve changed to Greek_CI_AS

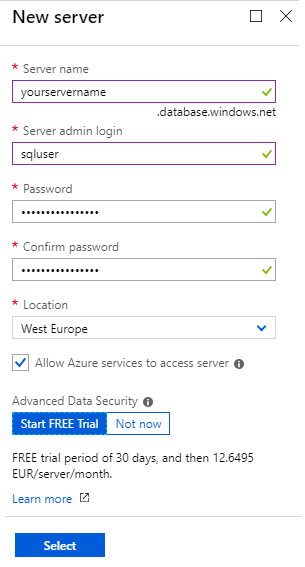

Step 3.1 – Create Server

If the Server exists this step is not mandatory, but if not then we must see how to deploy a new server.

SettingValue
Server nameType the server name, this MUST be unique
Server admin loginType the Server admin login
Password /  Confirm passwordType and re-type the Server admin password
LocationSelect the Location for the Server
Allow Azure services to access serverCheck this option to allow other Azure applications to access this server
Advanced Data SecurityA unified security package for discovering and classifying sensitive data, detect anomalous activities that could be harmful to the database.



Step 3.2 – Use Elastic Pool

Elastic pool is a good option if we have to manage more than one databases. Imagine

If  the SQL elastic pool option is checked

then, a new blade is open and we have to type the elastic pool name and select the

Configure pool
purchase model.

Step 3.3 – Select Pricing Tier

It is quite important to know what are the required resources for the databases because based on those we are able to select the correct tier.
For more details about Services Tiers and their cost, check the following links.

Pricing Options



↑ Back to top


Procedure In The On-Premise Environment

The first we must to do is to
download
 and install the Data Migration Assistant (DMA).

Install The DMA

At the following steps, we can see how easy is the DMA installation.

Step 1 – Wizard welcome screen

In the first step click Next to begin installation

Step 2 – End User License Agreement

Read the EULA, select the check-box {I accept the terms in the License Agreement} and click
Next

Step 3 – Privacy Statement

Read the Online privacy statement and select Install.

Step 4 – Installing Microsoft Data Migration Assistant

The installation has begun and the new files are copying.

Step 5 –  Completed the Microsoft DMA Setup Wizard

The installation is completed, and we select Finish to exit from the Wizard.



↑ Back to top


The Migration Process



Create New DMA Project

Before we start we need to create a new Data Migration project {Assessment /
Migration
}, type Project name, select Source server type,
Target server type, Migration scope and click
Create
.

Step 1 – Select source

The first of the six steps is to select the source server. Select the Server name that the
source database is located and click Connect. If the connection is successful then choose the database to migrate and select
Next.

Step 2 –  Select target

Select the target server (SQL Database), a database for the migration process and click
Next.

  Note
If you intend to migrate Windows users, make sure the target external user domain name is set correctly.



Step 3 – Select objects

In the 3rd step we need to select the schema objects from the source database that would be migrate to the target database, and click the button
Generate SQL script.

Step 4 – Script & deploy schema

The SQL script is generated for all selected object we can review, edit (if this needed), and click
Deploy schema, to begin the deployment in Azure SQL Database.
If this completed then select Migrate data.

Step 5 – Select tables

Select the tables that we want to migrate data to Azure SQL Database and click Start data migration.

Step 6 –  Migrate data

If we select data migration from the previous step then we see how the migration process is running.




Migration Demo Video

At the following video file, we can see all the necessary steps for database migration from On-Premise SQL Instance to the one that is deployed in Azure.




Migration Results

Last but not least is to check if the database schema and the data were migrated successfully.

Step 1 – Connect via SSMS

Open the SQL Server Management Studio (SSMS) and type Server name,
Login, Password and click Connect.

Step 2 – Querying the Database

We connect to the database via SSMS and we only need to open tables and check schema and data.


Conclusion

In this post, we talk about database migration in Azure from an On-Premise infrastructure and how easy is this to be done in a few steps. We created an Azure SQL Database Instance and we migrate an On-Premise database by using the Data Migration Assistant v.4.2
tool.
